Deck Screens, Patio Screens,
and unlimited other specialized applications
- patent pending -
|
●
|
|
●
|
|
●
|
|
●
|
INSTALLATION LINKS
Please Select …
|
●
|
|
●
|
|
●
|
|
●
|
made in the United States
-Patent Pending -
Designed and Manufactured by
Connecticut Screen Works, Inc.
Wallingford, CT
“Hot Product”
Snapp™ Screen System is an extremely easy to use porch screening product that is nearly invisible when installed.
Snapp™ is adaptable to all shapes and sizes of openings and can be utilized in a wide variety of projects. It’s a great choice for porch, patio, and deck screening applications as well as an unlimited array of specialized installations.
How easy is it? Simply cut the extrusion to length, install on each side of the opening,
roll in the screen …. Done!
So simple … it’s a “Snapp”™
Snapp™ can be mounted to any base material including steel, aluminum,
wood, Azek,
and others. It can be mounted directly to the structure or to a framing system (wood
style frames for example) or to anything else you can dream up. Applications for
Snapp™ are limitless.

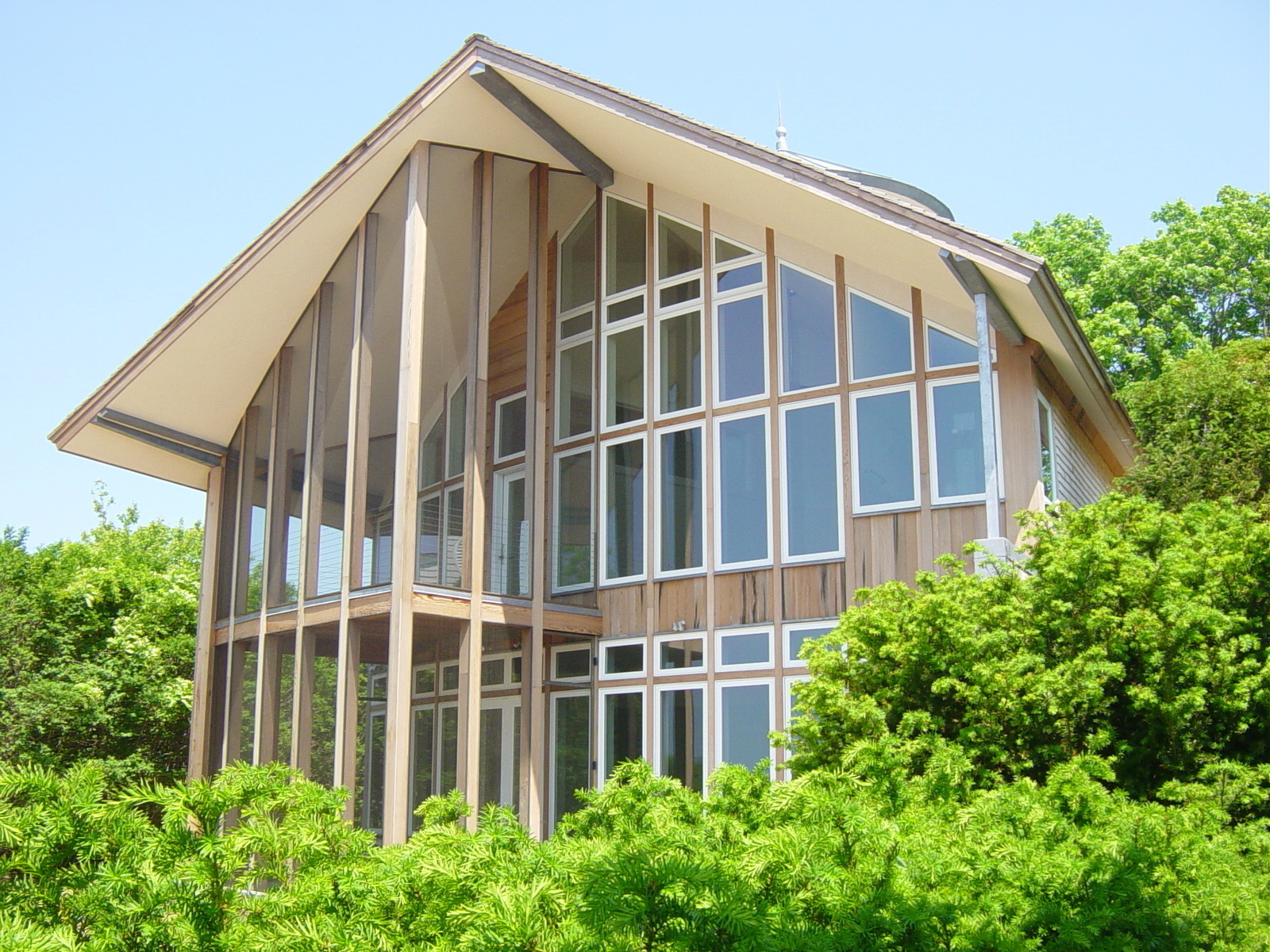

(See pictures below) The Snapp™ extrusion can be mounted “inside” or “around” any opening. It’s specifically designed to be out of sight. When installed “inside” it will take up only 1/2” - when mounted “around” it will take up less than 1/16”. There is virtually no loss of sight lines.
(See pictures above) Not only can the Snapp™ extrusion be mounted “inside” or “around” an opening (or a combination of both), it can be mounted facing inward or outward and it can be mounted with Butt Corners or Miter Corners (or a combination of both).
Are your openings out of square, not plumb, not level, an odd shape ? Not a problem. Snapp™ will work with ANY shape opening … including arches.
The Snapp™ extrusion can also be butted together infinitely and can be used with all types of screening materials. Snapp™ is available in solid extruded aluminum or solid extruded PVC.
Extruded Aluminum Snapp™
Stock length: 96” - T6 Temper
Finishes: (See Specifications)
- Mill - Unfinished
- 204 Class II Clear Anodized
- 312 Class I Medium Bronze Anodized
- White Powder Coat:
(Tiger Drylac Series 49 / 11340)
Other Information:
- Standard stock T-6 temper can be hand molded for large arches during installation.
Use of a commercial bender is recommended.
- Lighter temper also available (IN MILL ONLY) for tight radiuses. Use of a commercial
bender is recommended.
- No opening size limitation.
- Extrusion can be butted together infinitely.
- Install extrusion using our stock screws or any screw suitable for the application.
Place 1 screw 2” from each end and then 1 screw every 2 feet. Pre-drill all holes.
- Extrusion will accept any fiberglass, metal or polyester screen material.
- Use only Polyfoam Spline
- Use only 3/32” (or smaller) nylon wheel tool.
- Spline size is based upon screen material being installed. Use .140 polyspline when installing .025g heavy polyester materials or .170 polyspline for all other screen materials.
Snapp™ Screen System is available in
Extruded Aluminum and Extruded PVC
Extruded PVC Snapp™
Stock length: 99”
Finishes: (See Specifications)
- White
- Bronze (Available late 2013)
Other Information:
- PVC Snapp can be installed into tight arches without a bender.
- Installs directly onto pressure treated materials without a bond breaker.
- Great choice for direct salt air exposure applications.
- Intended for use in openings of 100 square feet or less.
- Extrusion can be butted together infinitely.
- Install extrusion using our stock screws or any screw suitable for the application.
Place 1 screw 1” from each end and then 1 screw every foot. Pre-drill all holes or
use self drilling screws.
- Extrusion will accept any fiberglass, metal or polyester screen material.
- Use only Polyfoam Spline
- Use only 3/32” (or smaller) nylon wheel tool.
- Spline size is based upon screen material being installed. Use .140 polyspline when installing .025g heavy polyester materials or .170 polyspline for all other screen materials.
